OBT Portable Brinell Hardness Tester

Product description:

MHB-3000 Characteristics: ● MHB-3000 is a portable Brinell hardness tester. It has a hydraulic system and the test force is applied by means of a handle; ● MHB-3000 condition is applying 3000kg test force on a 10mm carbide indenter. It

Share With:

We're here to help:
Easy ways to get the answers you need

Send E-mail Chat Now

PRODUCT DETAILS

Portable Brinell Hardness Tester

MHB-3000 Characteristics:
● MHB-3000 is a portable Brinell hardness tester. It has a hydraulic system and the test force is applied by means of a handle;

● MHB-3000 condition is applying 3000kg test force on a 10mm carbide indenter. It can result in permanent indentations for reinspection. The test condition meets the requirements of ISO 6506 and ASTM E110.

MHB-3000 Specifications:

Product Name		Portable Brinell Durometer
Model		MHB-3000
Code#		832-113
Testing Force		3000kg (500kg, 750kg, 1000kg, and 1500kg available)
Indenter		Ф10mm carbide ball indenter (Ф 5mm available)
Testing Range		8-650HBW (Expendable to 28-650HBW)
Max. Specimen Height		320mm
Throat Depth		100mm
Accuracy		Complied with ISO 6506
Repeatability		Complied with ISO 6506
Net Weight		3.8kg
Execution Standard		GB/T231.2，JJG150,EN-ISO6506

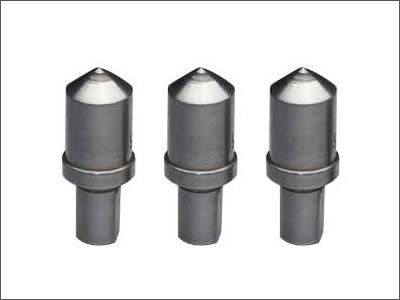

Steel Ball Indenter

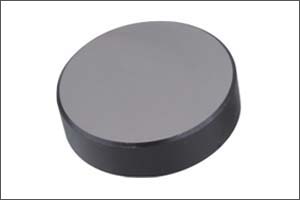

Ф60mm Flat Anvil

MHB-3000 Standard Delivery:

Product Name	Code#	Product Name	Code#	Product Name	Code#
Instrument Main Body	832-113	20X Measuring Microscope	832-213	Ø 60mm Flat Anvil	832-503
Hardness Block HBW/3000/10	832-603	Hexagon Wrench	832-713	Hemispherical Anvil	832-533
Hardness Block HBW/750/05	832-613	Ф10mm Spare Carbide Ball Indenter	832-413	Ø40mm V-shaped Anvil	832-523
